GALAGeometry-Aware Latent Action Modeling
for Vision-Language-Action Model Pretraining
across Embodiments

Yichen Liu^1*Puzhen Yuan^1*Xiang Zhu^1,2*Yanjiang Guo^1,2Jianyu Chen^1,2†

¹ Institute for Interdisciplinary Information Sciences, Tsinghua University, China

² Shanghai Qi Zhi Institute, China

* Equal contribution† Corresponding author

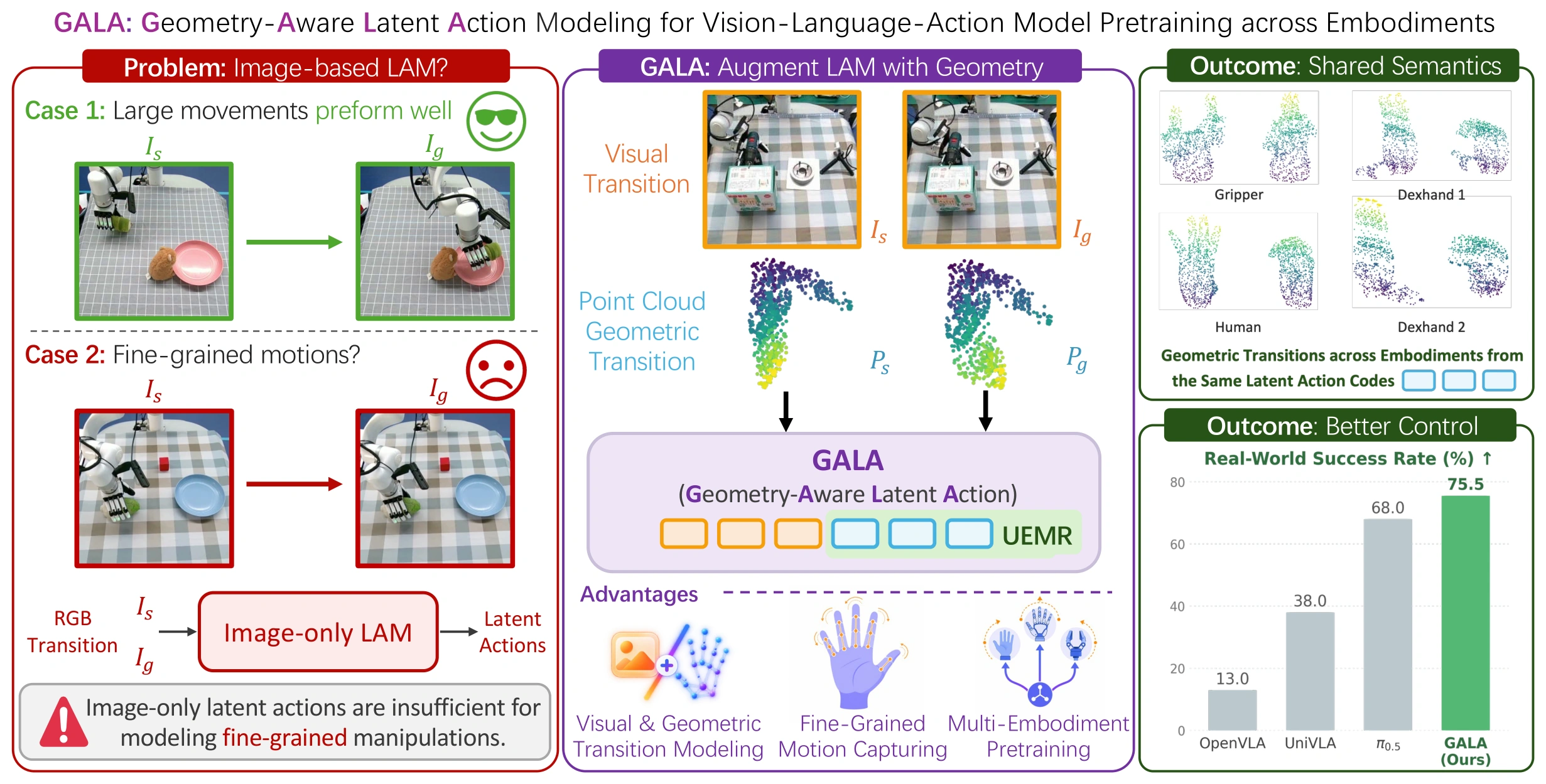

GALA combines visual transitions and 3D end-effector geometry to learn shared fine-grained latent actions across embodiments. — Learning **how end effectors manipulate**, alongside where they move.

Abstract

Learning large-scale vision-language-action (VLA) models from multi-embodiment datasets remains challenging due to heterogeneous action spaces across end effectors. Although latent action models (LAMs) can learn embodiment-agnostic action representations from diverse video data, existing image-based LAMs often fail to capture fine-grained end-effector articulation, particularly finger-level geometric changes in human and dexterous robot hands. To address this limitation, we propose GALA, a Geometry-Aware Latent-Action modeling framework that augments image-based latent actions with 3D end-effector geometric motion. However, naively incorporating point clouds yields fine-grained action representations with limited shared semantics, hindering cross-embodiment pretraining. To address this issue, we introduce the Unified End-effector Motion Representation (UEMR), which preserves fine-grained motion information while improving the cross-embodiment generalizability of latent actions. Building upon UEMR, GALA combines visual latent actions that capture scene-level dynamics with geometric latent actions that capture shared fine-grained end-effector articulation, providing effective supervision for VLA pretraining from multi-embodiment data, including action-free ego-centric human videos. Experiments on fine-grained motion probing, cross-embodiment retrieval, and downstream VLA evaluation demonstrate GALA’s effectiveness in modeling generalizable fine-grained motions across embodiments, achieving 68.3% RoboCasa-GR1 success rate and 75.5% real-world success rate.

Overview Video

Method

Visual dynamics and fine-grained geometry, learned together across human hands, dexterous robot hands, and parallel-jaw grippers.

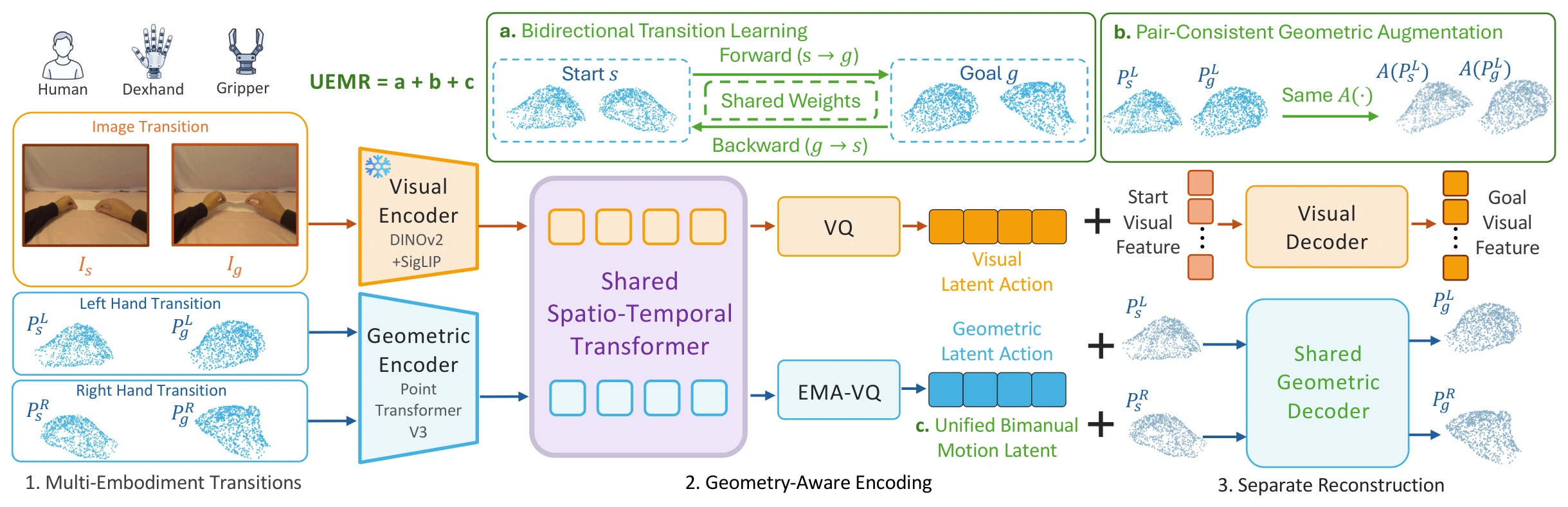

Stage 1 architecture with visual and geometric encoding, shared latent actions and separate reconstruction. — GALA jointly encodes RGB transitions and 3D end-effector point clouds. **UEMR** combines a unified bimanual motion latent, pair-consistent geometric augmentation, and bidirectional transition learning to capture shared motion semantics without requiring joint or point correspondence.

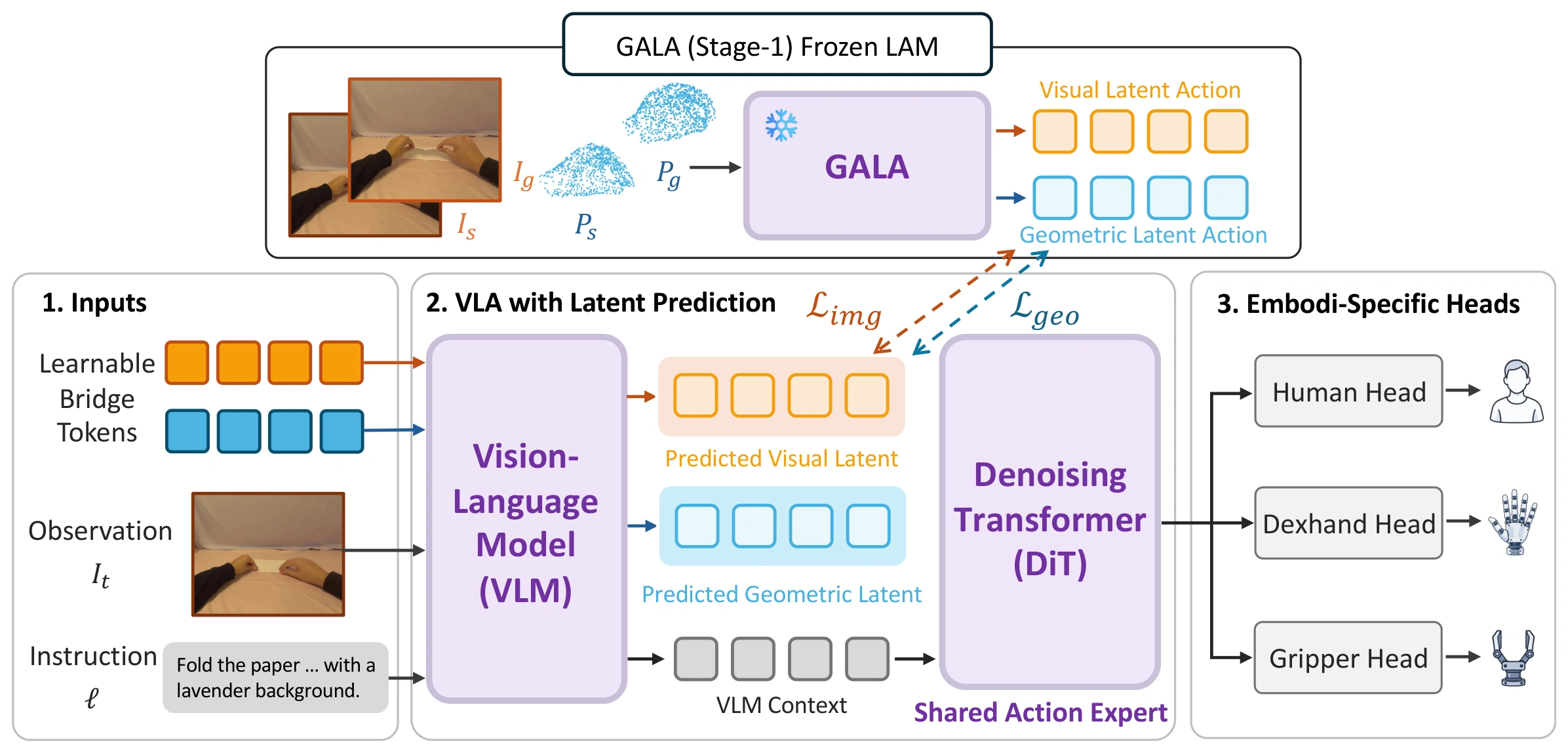

Stage 2 architecture: frozen GALA supervises VLM bridge tokens and a shared action expert with embodiment-specific heads. — Frozen visual and geometric latent actions supervise dedicated bridge tokens in the vision-language model. A shared flow-matching action expert predicts continuous actions through embodiment-specific heads, preserving each embodiment’s native action space.

Experimental Results

Fine-Grained Motion Probing

A frozen representation and a lightweight probe predict end-effector translation, wrist rotation, and finger articulation.

Method	Position (cm) ↓	Rotation (°) ↓	Finger (°) ↓
METIS	6.162	8.520	14.328
Native Kinematics	5.879	8.098	7.768
OPFA	6.102	8.260	7.707
GALA w/o PC	6.790	8.567	15.113
GALA (Ours)	5.359	7.898	7.585

Held-out XHand test set; averaged over three fixed random seeds. Lower is better.

Cross-Embodiment Motion Retrieval

Retrieving grasp, hold, and release transitions across different embodiments.

Human–Robot Track

Method	R@1 ↑	P@5 ↑	mAP ↑
METIS	33.26	33.29	37.21
GALA w/o PC	33.37	33.37	36.38
GALA w/o UEMR	38.69	40.31	48.15
GALA (Ours)	45.67	44.57	49.49

Robot-Only Track

Method	R@1 ↑	P@5 ↑	mAP ↑
METIS	33.30	33.30	36.10
Native Kinematics	39.31	35.46	41.94
OPFA	41.18	36.83	43.03
GALA w/o PC	33.38	33.38	36.41
GALA w/o UEMR	33.83	38.54	43.11
GALA (Ours)	46.91	41.74	46.95

All metrics are percentages; higher is better. Macro-averaged across motion classes and directed embodiment pairs.

68.3%RoboCasa-GR1
multi-embodiment success

+12.6%RoboCasa gain from
multi-embodiment co-training

75.5%Real-world
average success

RoboCasa-GR1 · GR-1-Only Training

Latent action model	Success rate (%) ↑
UniVLA	48.0
METIS	43.8
Native Kinematics	51.8
OPFA	53.5
GALA w/o PC	50.9
GALA w/o UEMR	54.4
GALA (Ours)	55.7

Same VLA architecture, training data, and optimization settings; only the latent action model changes.

RoboCasa-GR1 · Multi-Embodiment Co-Training

Average success across 24 dexterous tabletop manipulation tasks.

FLARE

55.0%

DiT4DiT

56.7%

JoyAI-RA

63.2%

UniT

66.8%

UniVLA

53.6%

GALA w/o UEMR

58.6%

GALA

68.3%

Success rate on a 0–100% scale. Publicly reported baselines are reproduced from the paper.

Method	Success rate (%) ↑	Gain vs. GR-1 only
FLARE	55.0	—
DiT4DiT	56.7	—
JoyAI-RA	63.2	—
UniT	66.8	—
UniVLA	53.6	+5.6
GALA w/o UEMR	58.6	+4.2
GALA (Ours)	68.3	+12.6

RoboCasa-GR1 Demonstrations

One successful rollout for each of the 24 tabletop manipulation tasks.

01Cup → drawer + close

02Potato → microwave + close

03Milk → microwave + close

04Bottle → cabinet + close

05Wine → cabinet + close

06Can → drawer + close

07Cutting board → basket

08Cutting board → cardboard box

09Cutting board → pan

10Cutting board → pot

11Cutting board → tiered basket

12Placemat → basket

13Placemat → bowl

14Placemat → plate

15Placemat → tiered shelf

16Plate → bowl

17Plate → cardboard box

18Plate → pan

19Plate → plate

20Tray → cardboard box

21Tray → plate

22Tray → pot

23Tray → tiered basket

24Tray → tiered shelf

Real-World Manipulation

Success rates across four evaluated tasks, with 50 trials per task.

Method	Pick ↑	Push ↑	Press ↑	Flip ↑	Average ↑
OpenVLA	0	24	18	10	13.0
UniVLA	38	62	32	20	38.0
OpenVLA-OFT	52	72	54	42	55.0
π₀	56	72	56	34	54.5
π₀.₅	72	80	68	52	68.0
HARP-VLA	72	82	74	58	71.5
GALA w/o UEMR	74	78	72	50	68.5
GALA (Ours)	80	82	78	62	75.5

Success rates (%). Pouring demonstrations are supplementary and are not included in this benchmark.

Real-World Demonstrations

Dexterous manipulation across objects and actions.
Each demonstration includes third-person and wrist-camera views.

Pick and Place

Bamboo

Bamboo · 01

Bamboo · 02

Bamboo · 03

Orange

Orange · 01

Orange · 02

Orange · 03

Boxes

Yellow box · 01

Green box · 01

Pink box · 01

Push Object

Blue box · 01

Green box · 02

Red box · 03

Press Button

Button · 01

Button · 02

Button · 03

Flip Cup

Blue cup · 01

Shaker cup · 02

Pink cup · 03

Pour Liquid

Pouring · 01

Pouring · 02

Pouring · 03

Citation

@misc{liu2026galageometryawarelatentaction,
  title={GALA: Geometry-Aware Latent Action Modeling for Vision-Language-Action Model Pretraining across Embodiments},
  author={Yichen Liu and Puzhen Yuan and Xiang Zhu and Yanjiang Guo and Jianyu Chen},
  year={2026},
  eprint={2609.21948},
  archivePrefix={arXiv},
  primaryClass={cs.RO},
  url={https://arxiv.org/abs/2609.21948},
}
